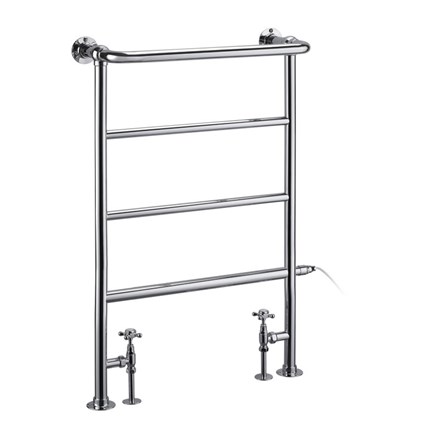

Berkeley Radiator

£639.00 RRP

Find a retailer

View technical details

Finish

SKU: R4CHR , Previous SKU: R4 CHR

5 year guarantee*

* Full terms & conditions here

Parts

1 x Berkeley - chrome (R4CHR) (Previous code: R4 CHR) – £639.00

Type	∆T = 50°c Watts	∆T = 55°c Watts	∆T = 60°c Watts	BTU's	DM³
Trafalgar	475	540	600	2047	7.2
Bloomsbury	356	400	445	1518	5.0
Vincent	219	250	280	955	2.9
Berkeley	180	210	240	819	2.4
Cleaver	164	190	210	717	2.2
Strand	218	250	280	955	2.4
Chaplin	235	268	300	1024	3.4

Maximum capacity when using a heating element is 90% of full capacity.

Please consult the installation guide for each model.

Finish	Chrome
Material	Steel
Length	235mm
Width	642mm
Height	950mm
Weight	5.5kg
Compliance	BS EN442-1:2003 Specification for radiators and convectors. Technical specifications and requirements BS EN442-2:2003 Specification for radiators and convectors. Test methods and rating Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr
Additional Information	Diameter of tubes is 32mm. Output:819 BTUs/180 watts (△T=50℃) For technical information on the summer heating kit please refer to the summer heating kit section Distance from wall to the rail is 110mm. Fill the radiator approximately 90% (2.2L) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system) Includes all brackets and fixings. High quality chrome plated finish. Valves are required. These are not included. Designed to be plumbed into your central heating system. Operating pressure up to 8 bar.(Certified by BEN N.L) Maximum working temperature:95℃

Instructions - R4 CHR	Download File
Manuel d’instructions – R4 CHR (Français)	Download File
