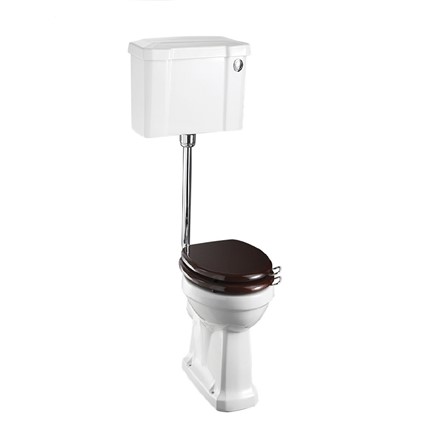

Standard Low Level WC with 520 Front Push Button Cistern

£519.00 RRP

Find a retailer

View technical details

Finish

SKU: C2 P2 T31 CHR

Lifetime guarantee*

* Full terms & conditions here

Parts

1 x Low level flush pipe kit including flush pipes and reverse screw cistern connector (T31CHR) (Previous code: T31 CHR) – £119.00
1 x Close Coupled / Low level cistern 51 cm Front Button (incl. bottom entry cistern fittings) (C2) – £185.00
1 x Low/high level pan (P2) – £215.00

Technical Specifications
Downloads

Finish	White
Material	Vitreous China
Shape	Standard
Height	450mm
Weight	33.94kg
Height Type	Standard
Rimless	No
Flush Type	Push Button
Trap Option	P-trap
Compliance	BS EN 997:2012 WC pans and WC suites with integral trap Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr
Additional Information	Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length. The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,075mm to the top of the cistern, minimum height is 900mm. Water Inlet valve hole is located on the base of cistern tank on the right hand side Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug P trap standard height pan - height from floor to pan rim is 40cm. Regal Height pan ( floor to pan rim height 48cm ) available : P16 Ceramic soil connection pipes. The S trap connector bending down to the floor : C26 Cistern can be used with optional decorative Ornate Brackets T32 CHR Low level wc must be used with standard Burlington toilet seats Supplied with floor fixings.

Instructions - T31 CHR	Download File
Manuel d’instructions – T31 CHR (Français)	Download File
Instructions - C2	Download File
Manuel d’instructions – C2 (Français)	Download File
